Daytek Retractable Clothesline, Restring or Repair Part 1 of 2 Parts

Our backyard undercover clothes line from Daytek needed new line and some of the existing lines had started to sag. I searched the ‘net’ for a ‘How to’ to repair it and couldn’t find anything. So I thought here’s an opportunity to fix it myself and upload a ‘How To’ myself.

This particular unit is an older model, however the principals should be similar for most of the retractable lines currently available I believe.

There are a few how to photos, so this post needed to be in 2 parts

Any comments or questions will be appreciated.
Time: 1 Hours Cost: $10 Difficulty: Easy
  • daytek retractable clothesline restring or repair part 1 of 2 parts

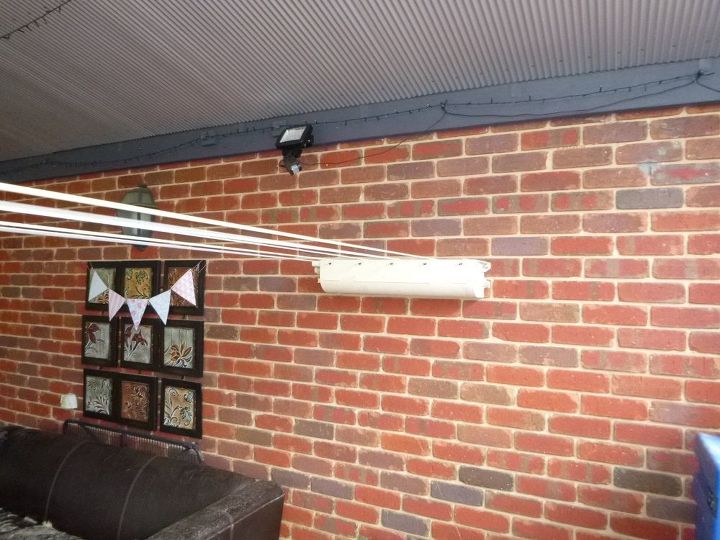

Here's the finished line, all tensioned correctly and safely fixed to the brick wall.
  • daytek retractable clothesline restring or repair part 1 of 2 parts

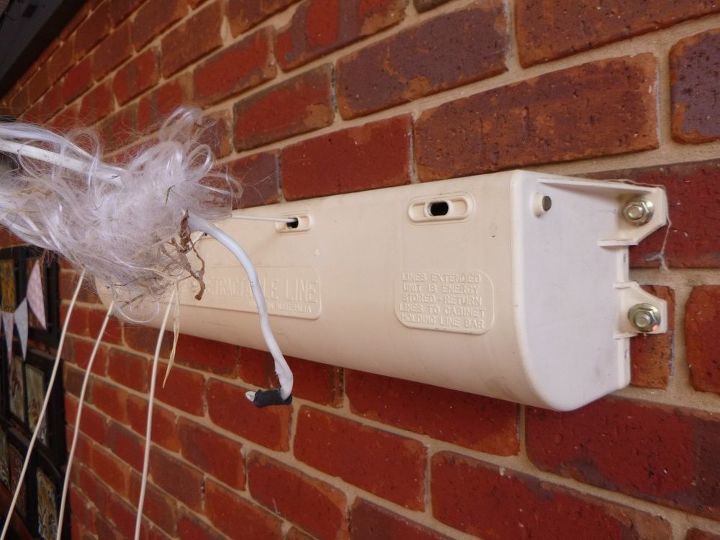

Broken line and others sagging, making wash day a bit of a hassle.
  • daytek retractable clothesline restring or repair part 1 of 2 parts

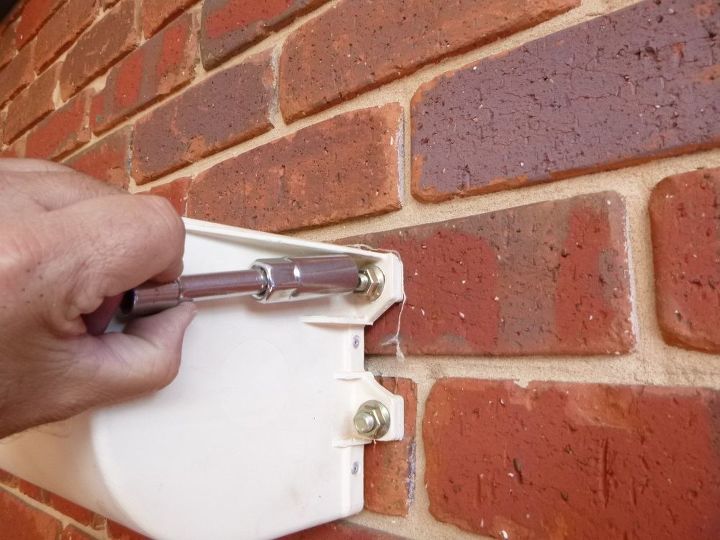

Removal of the retract unit from the wall
  • daytek retractable clothesline restring or repair part 1 of 2 parts

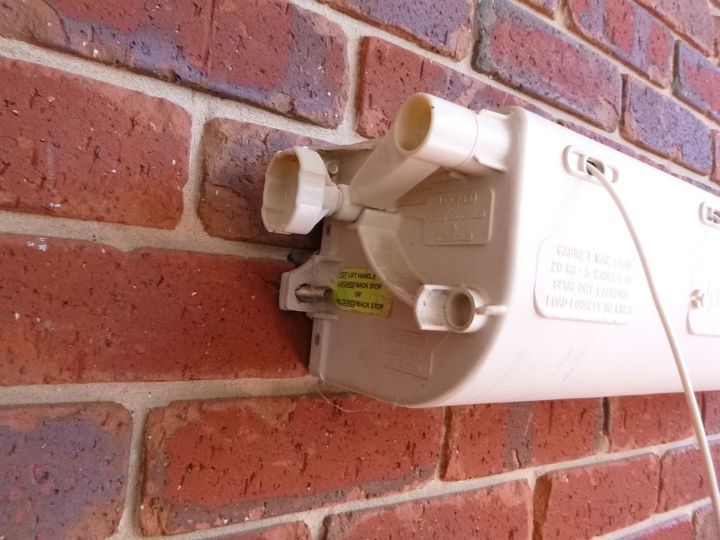

The other side of the unit showing the lock and other dynabolts used for fixing it to the brick wall.
  • daytek retractable clothesline restring or repair part 1 of 2 parts

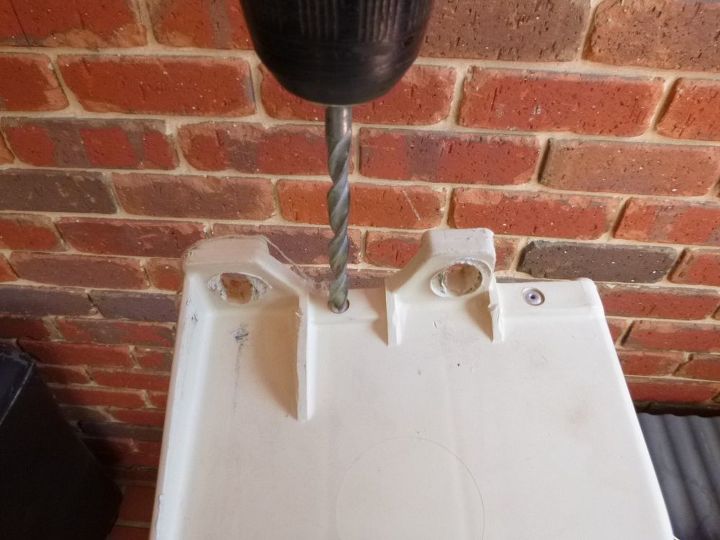

Using an 'Oversized' drill-bit to remove the 'head' of the pop rivet to allow the back to be removed for an internal inspection of the drum and tensioner units. Make sure you only drill out the head of the pop rivet and not all the way through otherwise you will damage the unit or make the holes too large and won't be able to refit the back
  • daytek retractable clothesline restring or repair part 1 of 2 parts

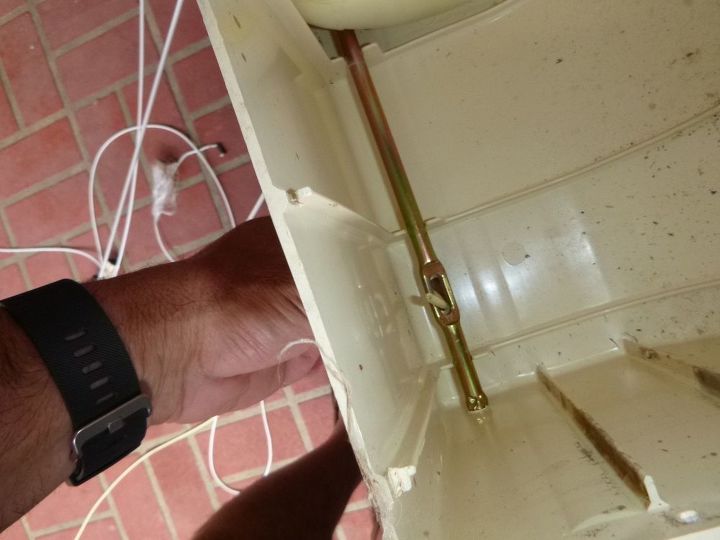

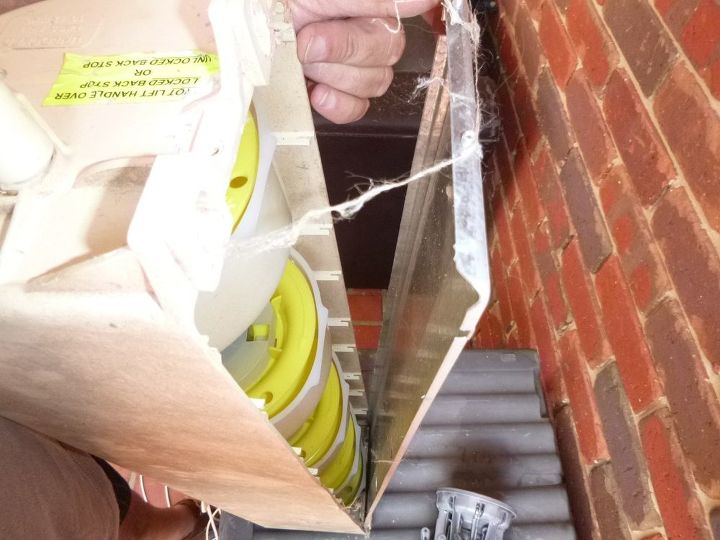

Inspecting the inner-workings of the unit, this has been home to spiders.
  • daytek retractable clothesline restring or repair part 1 of 2 parts

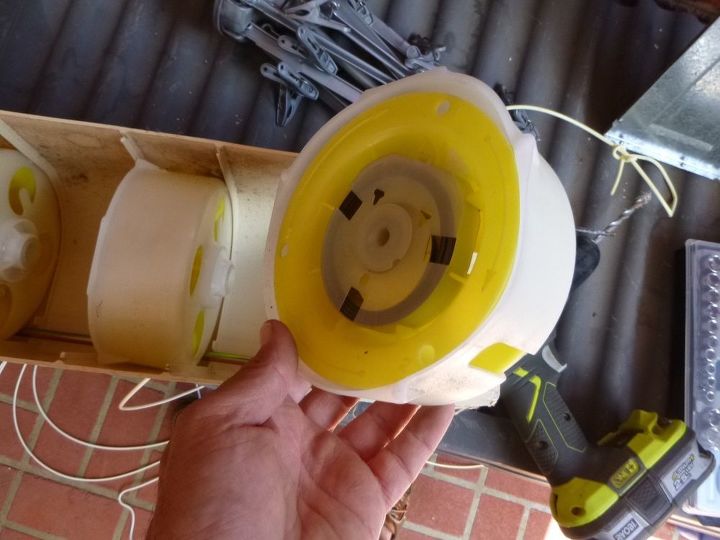

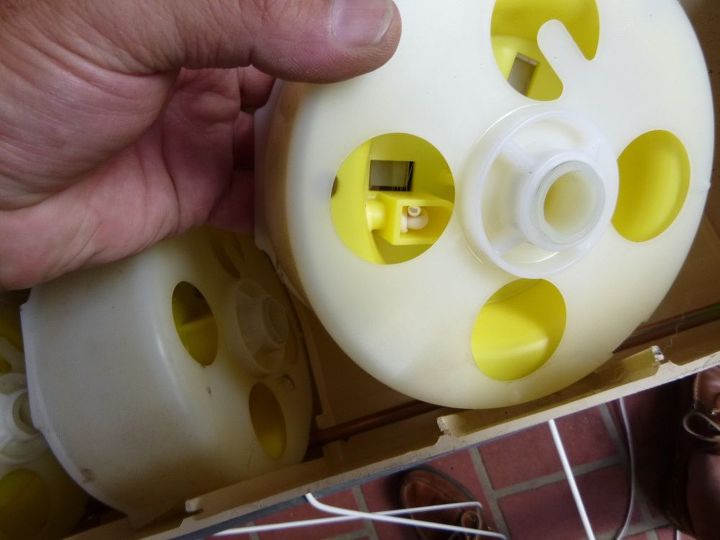

Inspection of the drum unit, it all looks quite serviceable except for the missing line. Check the retract spring mechanism (make sure that you don't catch your fingers and the spring is well enclosed as the tension held by the spring could be quite dangerous if it gets out of the drum).
  • daytek retractable clothesline restring or repair part 1 of 2 parts

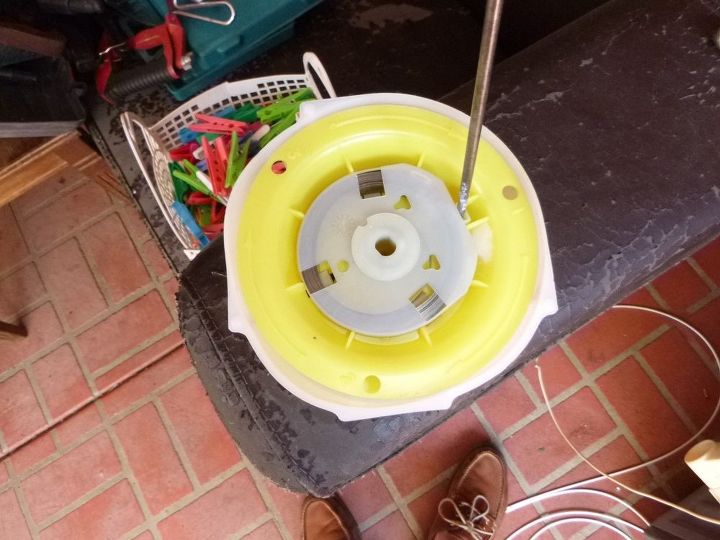

Winding on tension to the spring in the 'line drum unit'. I used a screw driver to hold tension on the drum, by lining up a hole on each side of the reel and drum unit and slid in the screwdriver; once I carefully added 25 full turns on the spring, so it was fully tensioned. The length of line is 20' (or 5.5m long).
  • daytek retractable clothesline restring or repair part 1 of 2 parts
You should be able to just see where the new line needs to be knotted on the reel just inside the drum unit. There's a slot in the drum where the line is fed through and it is a little tricky to get it lined up, look at one of the other drum units which still has line attached to see how it's supposed to be threaded.
  • daytek retractable clothesline restring or repair part 1 of 2 parts
Threading the new line into the Outer housing through the line brake (this tensions the line so wet clothes don't touch the ground)
  • daytek retractable clothesline restring or repair part 1 of 2 parts

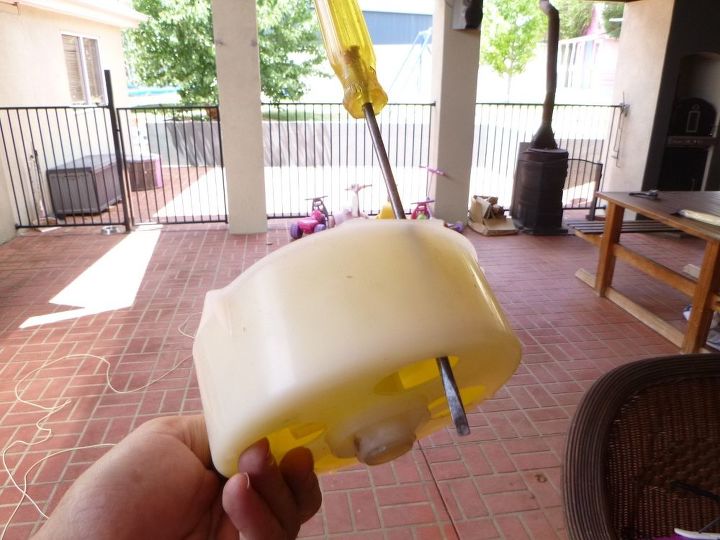

Screwdriver in position after unit is tensioned
  • daytek retractable clothesline restring or repair part 1 of 2 parts

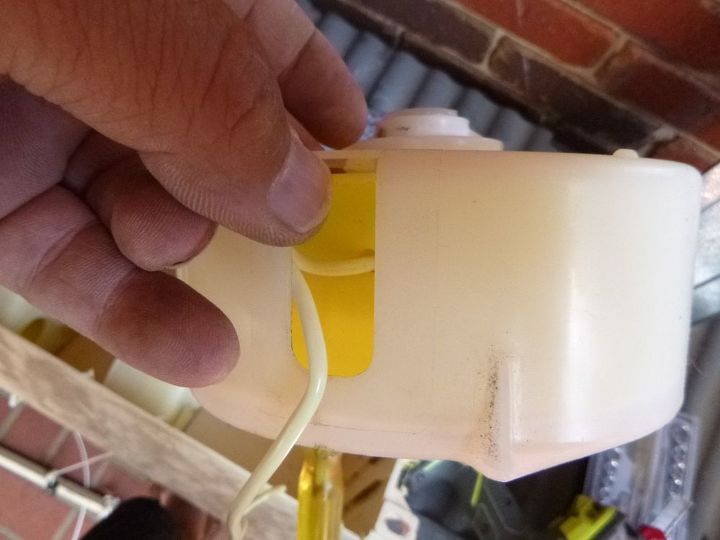

Feeding the new line into the reel and front of the drum unit
  • daytek retractable clothesline restring or repair part 1 of 2 parts

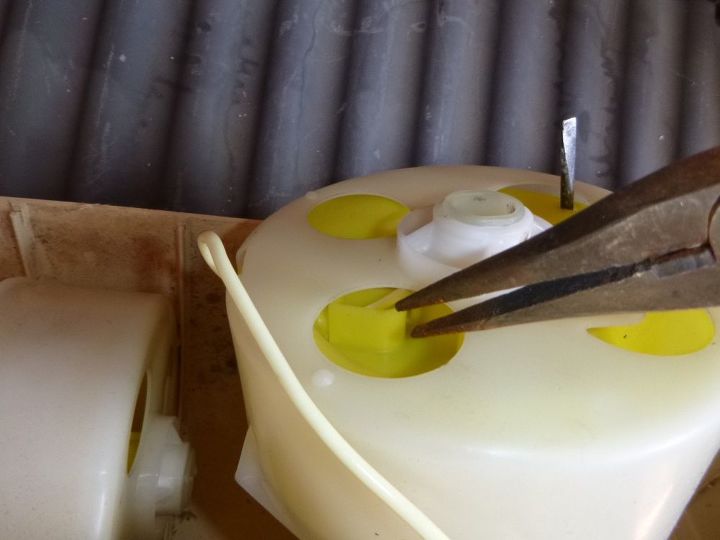

Using needle nose pliers to get the new line before tying it off with a double knot.
  • daytek retractable clothesline restring or repair part 1 of 2 parts

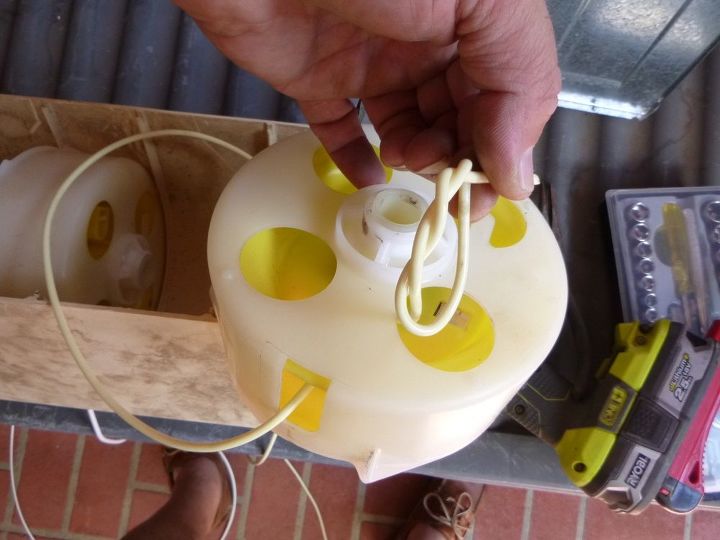

A double overhand knot to make sure it won't slip and the knot is large enough so it won't slip through the hole in the reel and come loose

Materials used for this project:

  • Daytek 30m Clothesline   (Hardware Store)
  • 4 x 8g screws   (Home Stock / Hardware Store)
  • Various screwdrivers, cordless drill, drill bits,   (Home Stock)
